| Dia. | Colour | Sales/Unit | Unit/Carton | Reference |
|---|---|---|---|---|
| 4 mm | White/Black fleck | 100 m | 8 /A | W6604WI/NO |
| 6 mm | White/Black fleck | 100 m | 8 /A | W7006WI/NO |
| 6 mm | Black | 100 m | 8 /A | W7006NO |
| 8 mm | White/Black fleck | 100 m | 4 /A | W7008WI/NO |
| 8 mm | Black | 100 m | 4 /A | W7008NO |
| 10 mm | White/Black fleck | 100 m | 2 /B | W7010WI/NO |
| 10 mm | Black | 100 m | 2 /B | W7010NO |
| 12 mm | White/Black fleck | 50 m | 4 /A | W6612WI/NO/50 |

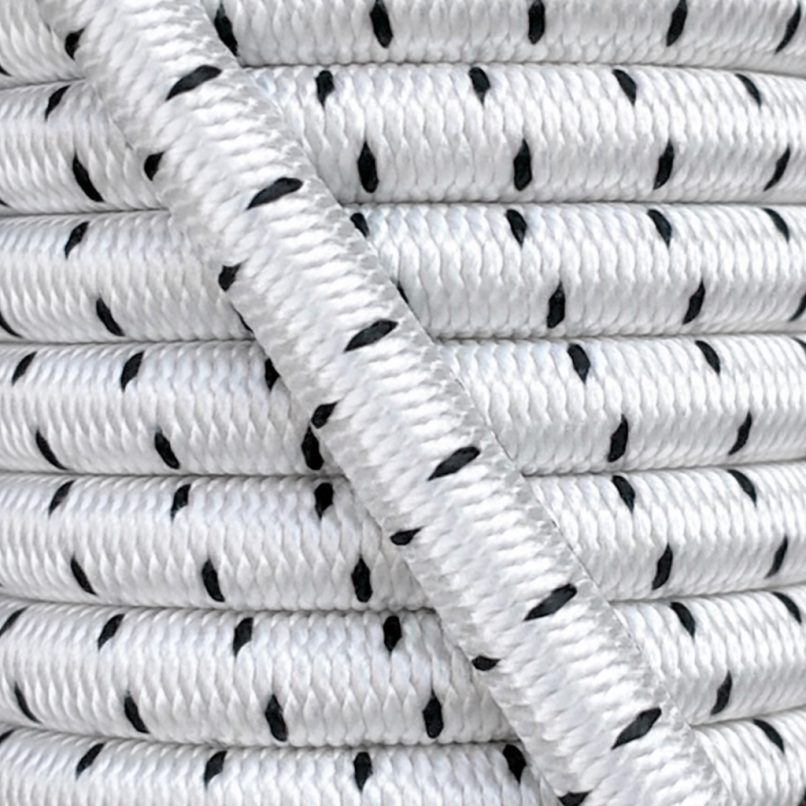

Marine and extreme conditions shock cord
Monoflex polyester (PES)
Applications
Marine usage: Boat protection covers - Retention of sails - Storage of accessories - Safety nets
Transport: Tarpaulins for trucks and trailers
Sport and leisure: Winter covers for swimming pools
Camping: Awnings and tents
General industry: Covers and safety nets for ponds - Protective nets for storage

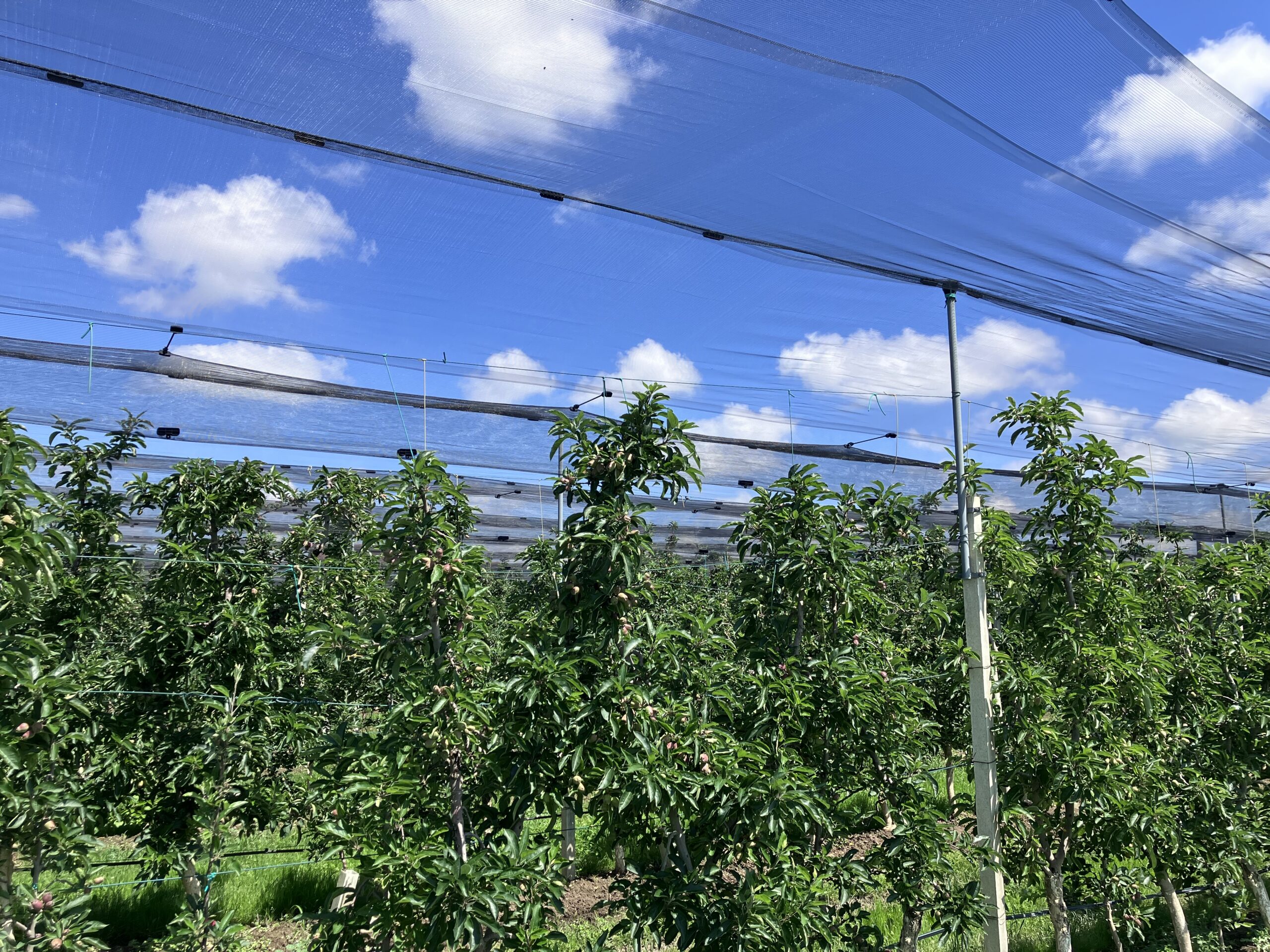

Fruit and horticultural industry: Anti-birds nets - Hail protection nets - Anti-insect nets - Frost protection covers

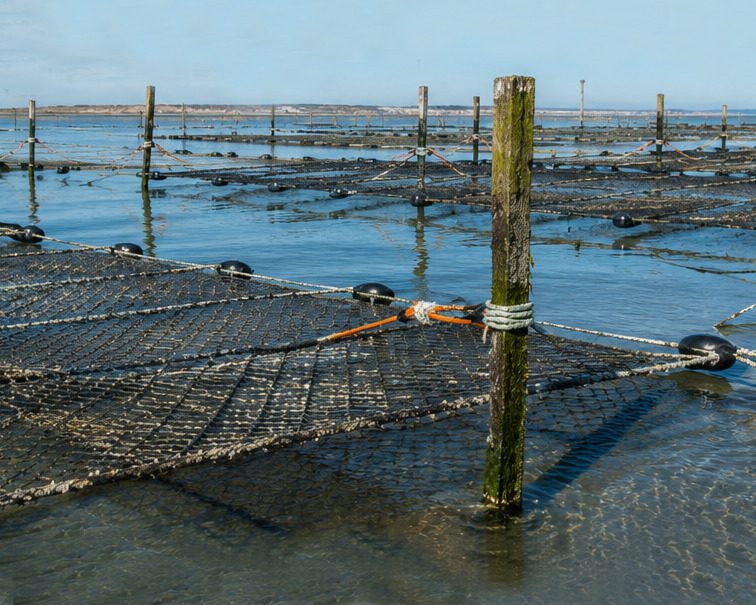

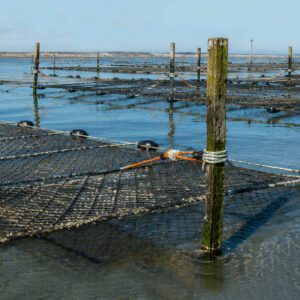

Aquaculture: Oyster crates
This extreme conditions shock cord has the highest U.V. and abrasion resistance of our range, which makes it a perfect fit for marine or all outside heavy work.
The best option for extreme conditions; the PES elastic cord has an inner core with added U.V. agents and a PES braided cover that protects the rubber from ultra violet radiations. This shock cord is perfectly suited for outdoor uses combined with, for example, sun protection for agriculture or aquaculture.
Abrasion resistance is one of the W70 PES shock cord main features. Designed to be used in marine conditions, it can suffer high friction without decaying.

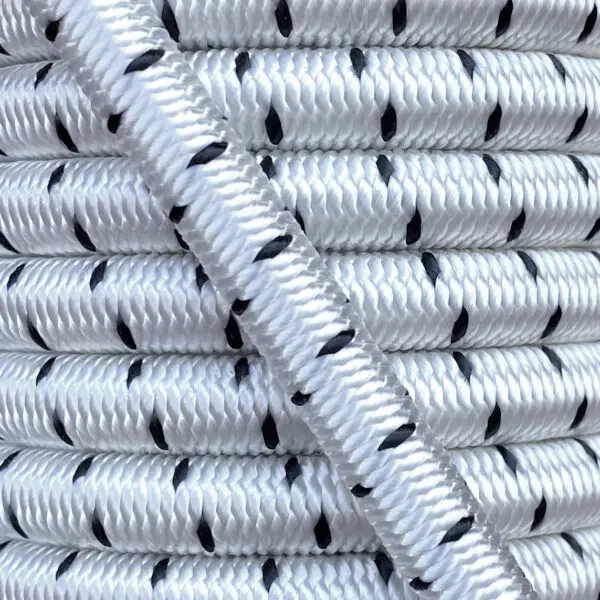

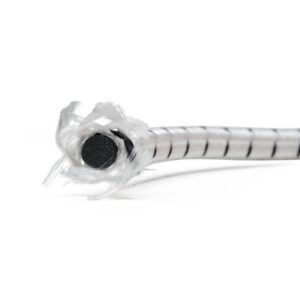

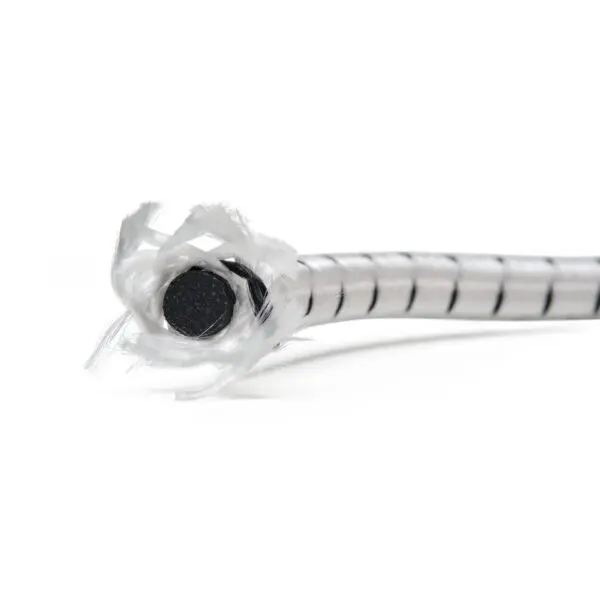

The inner core unique feature of W70 PES keeps the shock cord round when cut. The PES outer covering allows for a soft touch and an easy to bend shock cord perfect for making knots on boats or for general storage.
Good pulling – return force is a must when you use shock cords on a boat or in industrial fields where high strengths are needed and Monoflex PES shock cord offers just that.
When it comes to strength at breaking point, W70 has the best results in our range. High strength at break insures safety when using the PES elastic cord. The W70 will be perfect to maintain material where difficult weather conditions and high strains can be met.
| Nominal diameter in mm | 4 | 6 | 8 | 10 | 12 |
| Yarn type | 1000 Denier Polyester | ||||
| Inner core | Multi thread | Mono thread | Mono thread | Mono thread | Multi thread |
| Number of threads in the yarn | 16 | 17 | 64 | 80 | 72 |
| Colours | White - Black | ||||
| Net weight per 100 m in Kg | 1.4 | 2.9 | 4.8 | 7.8 | 6 / 50m |
| Strength in N at 25% stretch | 13 | 28 | 32 | 48 | 88 |
| Strength in N at 50% stretch | 16 | 37 | 44 | 62 | 110 |
| Strength in N at 75% stretch | 19 | 47 | 54 | 74 | 135 |
| Strength in N at 100% stretch | 23 | 58 | 69 | 89 | 160 |
| Elongation at break in % | 230 | 220 | 210 | 200 | 250 |
| Strength at break in Newton | 343 | 637 | 1314 | 1716 | 1880 |
| Tolerance on stretch and break | +/- 15 % | ||||
| Range of use | 25 to 75 % elongation | ||||
Outer covering: HIGH DENIER INDUSTRIAL YARN
| Type | SPEC | Denier | Tenacity /denier | Elongation % | Hot air Shrinkage % 177°C 2 minutes | Interlace | Twist | Testing method of 3, 4, 5: |
| FR2106PO | 1000D/192F/RAW White | 1000 +/- 15 | 9.10 +/- 0.3 | 14.00 +/- 2.0 | 9.50 +/- 1.50 | yes | 0 | ASTM-885 |
