| Dia. | Colour | Sales/Unit | Unit/Carton | Reference |
|---|---|---|---|---|
| 2 mm | Black | 100 m | 6 /B | W5002NO |

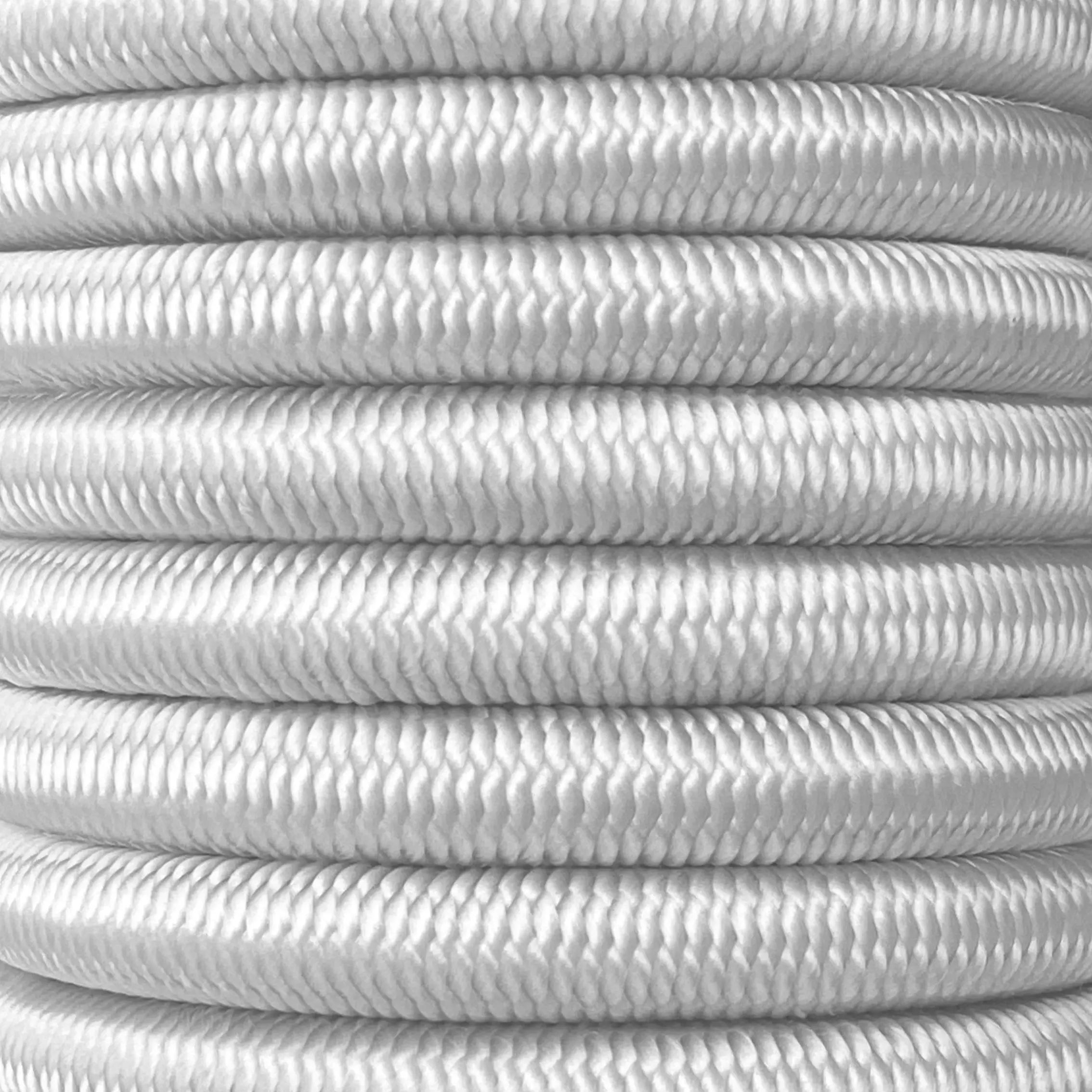

| 3 mm | White | 100 m | 8 /A | W5003WI |

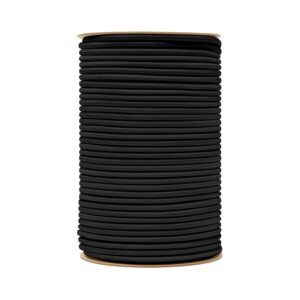

| 3 mm | Black | 100 m | 8 /A | W5003NO |

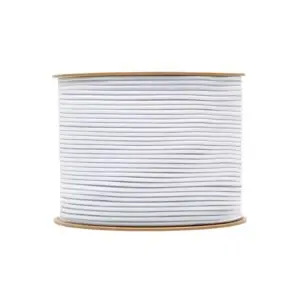

| 4 mm | White | 100 m | 8 /A | W5004WI |
| 4 mm | Black | 100 m | 8 /A | W5004NO |
| 4 mm | Blue | 100 m | 8 /A | W5004BL |

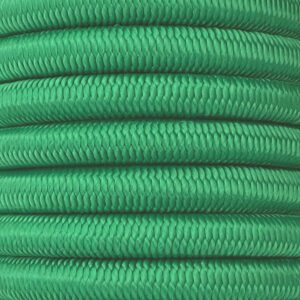

| 4 mm | Green | 100 m | 8 /A | W5004VE |

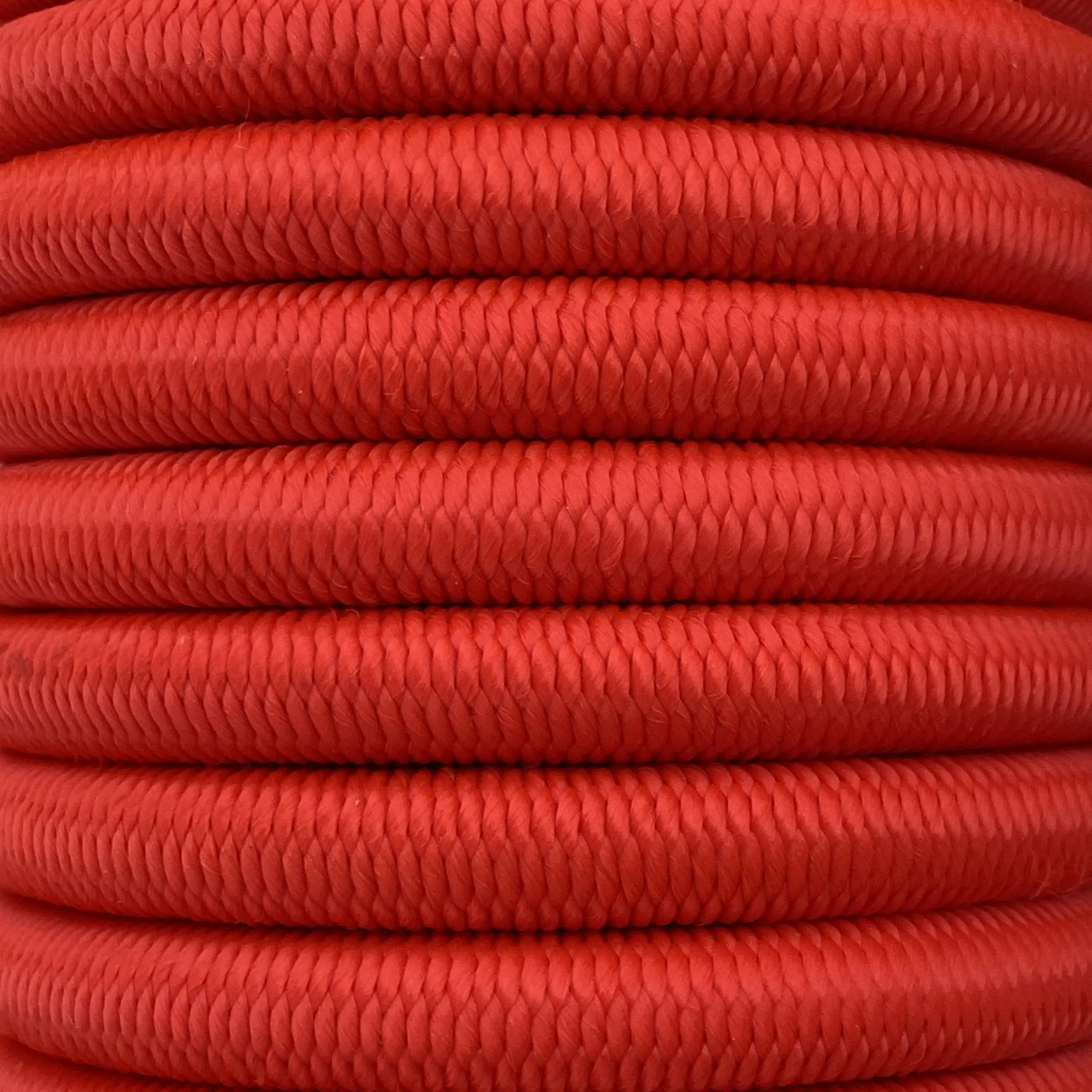

| 4 mm | Red | 100 m | 8 /A | W5004RE |

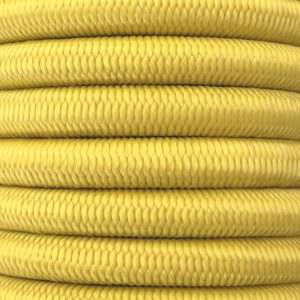

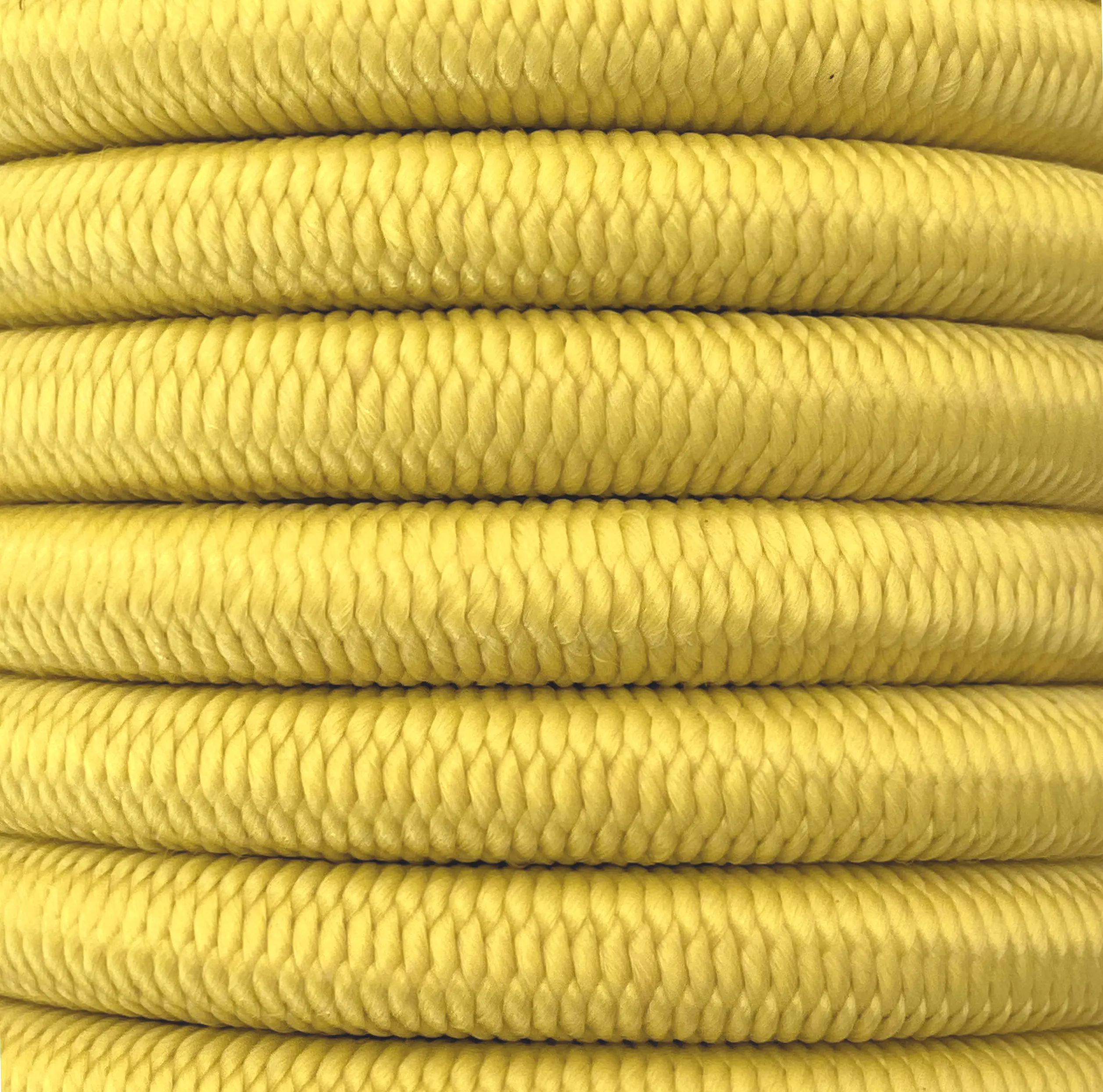

| 4 mm | Yellow | 100 m | 8 /A | W5004YE |
| 12 mm | Black | 50 m | 4 /A | W5012NO/50 |

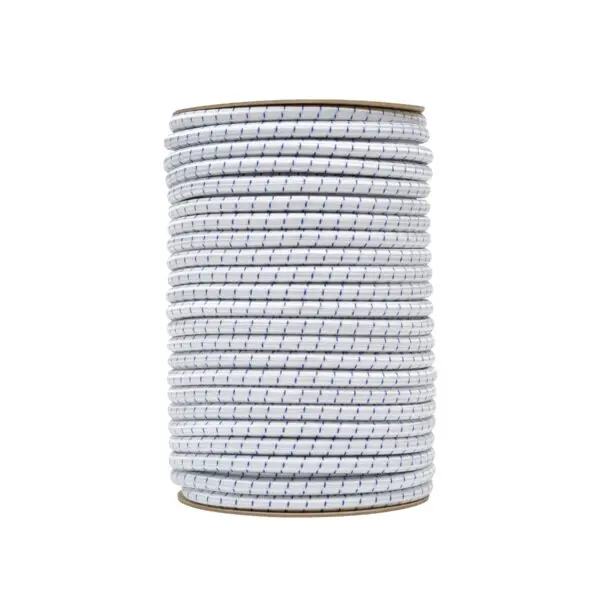

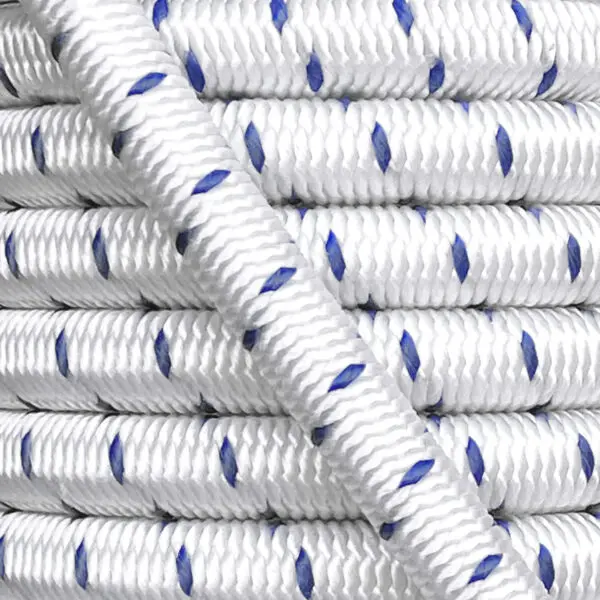

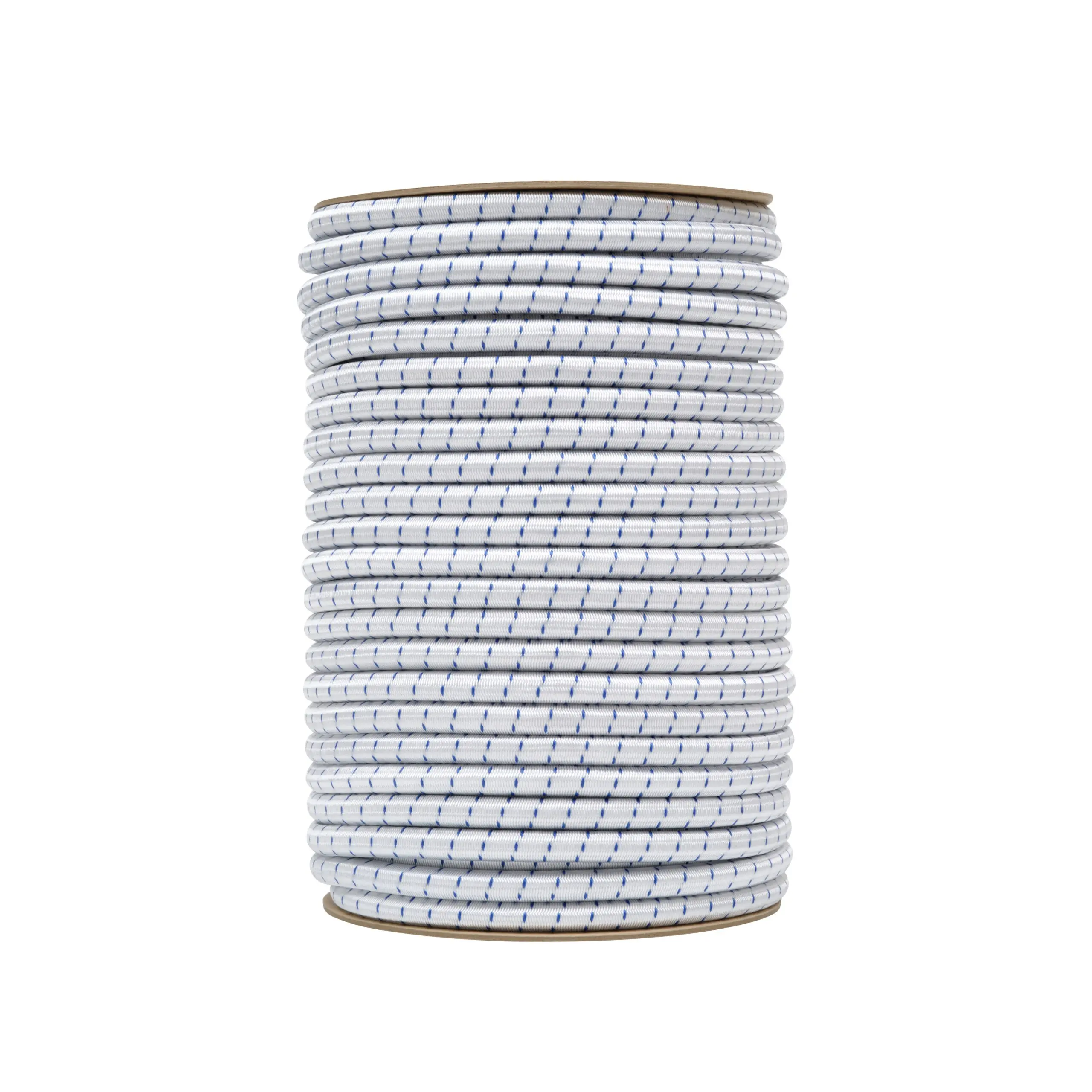

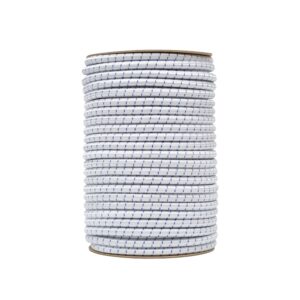

| 12 mm | White/blue fleck | 50 m | 4 /A | W5012WI/BL/50 |

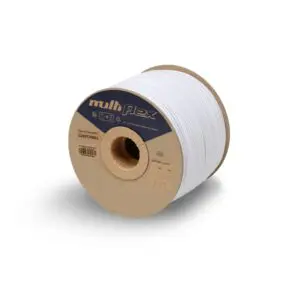

Multiflex polypropylene (PP) bungee rope
Applications
General industry: Lifting - Lashing - Protective tarpaulins and nets / safety for scaffolding - Protective nets for storage - Automatic doors - Anti-insect nets
Transport: Tarpaulins for trucks and trailers
Advertising: Tarps, banners and billboards - Flags
Events: Marquees and tents
Sport and leisure: Trampoline cords
Medical: Physiotherapist trampoline

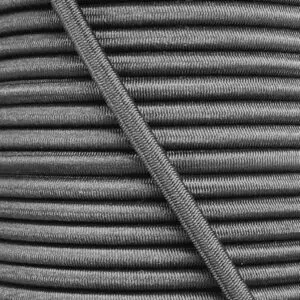

The large and small diameter solution. If you haven’t found a product that matches your specifications needs, please note that we also manufacture specially to answer your requirements as to physical properties, colour, packaging or dimensions. To respond most precisely to your requests we have laboratory equipment that will allow us to analyze your samples with accuracy and advise you with the best solution.
With a PP outer covering, the W50 has a strong resistance to U.V. and will suit indoor or outdoor uses.
The PP covering offers good protection to abrasion, enabling the shock cord to be used in all types of situations. Its applications are various such as banner lashing for advertising to leisure purposes such as sports nets, protective nets, or bicycle tensioners.

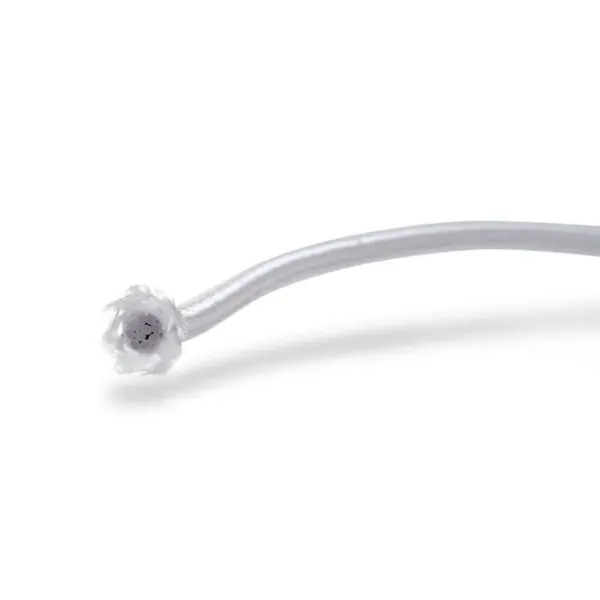

Small diameters shock cords will be perfect for light duties and bigger diameters will suit heavy duties. Whichever one you need, the PP covering of this polyvalent shock cord offers good flexibility, allowing the W50 to be used easily through an eyelet or making knots.
The Multiflex PP bungee rope provides a high pulling force meaning it will not stretch too much when undergoing a pulling force.
The PP offers the best strength at break meaning it will be perfect for any industrial uses where safety is a must or when high forces and strains are applied.
| Nominal diameter in mm | 2 | 3 | 4 | 12 |
| Yarn type | 900 Denier Polypropylene | |||
| Number of threads in the yarn | 32 | 48 | 16 | 72 |
| Colours | Black - White - Green - Blue - Grey - Red - Olive Green | |||
| Net weight per 100 m in Kg | 0.4 | 0.8 | 1.1 | 4.8 |
| Strength in N at 25% stretch | 3 | 9 | 13 | 71 |
| Strength in N at 50% stretch | 5 | 10 | 17 | 94 |
| Strength in N at 75% stretch | 6 | 12 | 23 | 114 |
| Strength in N at 100% stretch | 8 | 14 | 35 | 137 |
| Elongation at break in % | 210 | 250 | 230 | 260 |
| Strength at break in Newton | 108 | 147 | 323 | 1913 |
| Tolerance on stretch and break | +/- 15 % | |||
| Range of use | 25 to 75 % elongation | |||
Outer covering: HIGH DENIER UV resistant INDUSTRIAL YARN
| Denier | Linear density | Break tenacity | Breaking strength | Breaking elongation | Elongation CV | Oil Content | |
| Unit | D | dtex | Cn/dtex | N | % | +/- | % |
| Test Value | 900 | 1015 | 3.4 | 34 | 33 | 2.8 | 2 |

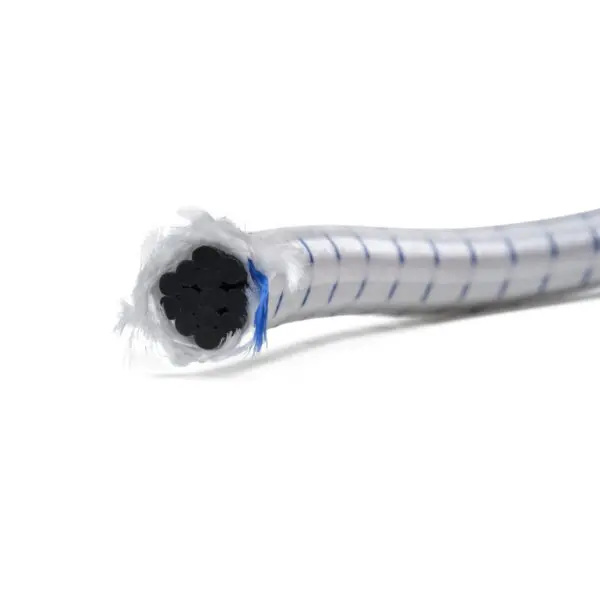

Inner core: Mono thread of natural extruded rubber with anti UV agents
